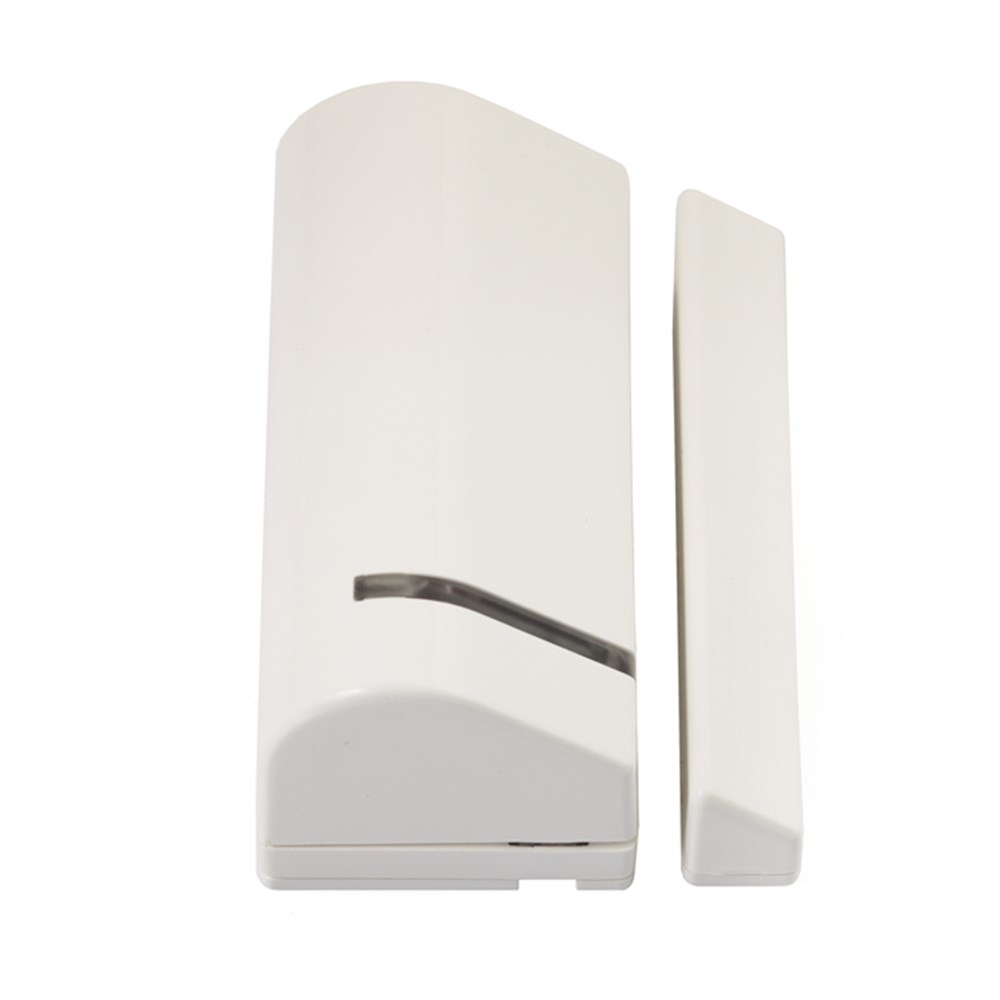

RISCO Wireless 2-Way Door/Window Reed Switch, 1 Input - RWX73M43300D

Product Code: RWX73M43300D

Are you a tradesperson?

Get access to our best prices



Dangerous Goods – Not deliverable via all carriers or all freight services
Description

RISCO’s 2-way Wireless Door/ Window Contact RWX73M is a supervised transmitter ideal for wireless perimeter door/window protection in residential and small commercial applications. The transmitter has a built-in magnetic contact and additional zone input that can be connected to wired magnetic contacts or to other wired sensors that can be used for various control or security applications.

It operates together with RISCO Group’s 2-Way wireless systems and is powered by a standard 3-V lithium battery. Its 2-Way wireless communication provides higher security, reduced wireless congestion, reduced RF communication and remote Control & Diagnostics. The RWX73M is easy to install using a simple bracket to wall installation, and easy to program using RISCO’s remote configuration software.

  • Communication: Bi-directional.
  • Fully supervised.
  • Built in magnetic contact.
  • Selective input response time adjusted to wired sensors (Fast for shock sensors, Slow for magnetic switches).
  • Range: up to 300m range (outdoor).
  • Selective input termination (NO, NC, DEOL) for universal control function.
  • Back and cover tamper protection.
  • Anti-sabotage tamper protection.
  • One channel recognized as separate zones in the system with selective functionality (universal or shutter protection).
  • To extend battery life option to send events once in 2.5 minutes.
  • Compatible with RISCO's wireless and hybrid systems.
  • Battery type: CR123 3V Lithium Battery.
  • Current Consumption: 11µA standby.
  • Frequency: 433.92 MHz.
  • Dead Time (HOLD ON): 2.5 minutes.
  • Supervision Transmission: 0-255 minutes.
  • Typical battery Life: 3 years.
  • Contact Size: 32 x 35 x 72 mm.
  • Magnet Size: 16 x 11 x 72 mm.
  • RF immunity: According to EN50130-4
  • Operating temperature: 0°C to 40°C.
  • Storage temperature: -20°C to 60°C.
Technical Specifications
Brand Risco
Finish White
Battery Type and Quantity 1x CR123
Wireless Connectivity Yes
Type of Detector Reed Switch
