Neptune Press to Exit,ANSI,IP65,NO/NC/C,1.7mm SS,Flat PUSH TO EXIT,Grn | Exit Buttons & Switches - LSC | Complete Security Solutions - LSC Security Supplies

page

Product Code: NEPAWNCSFPG

Description

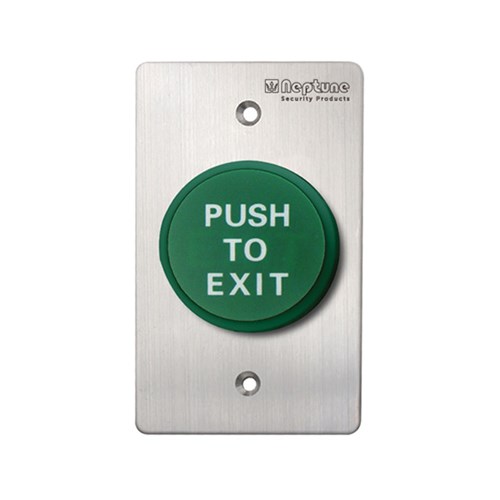

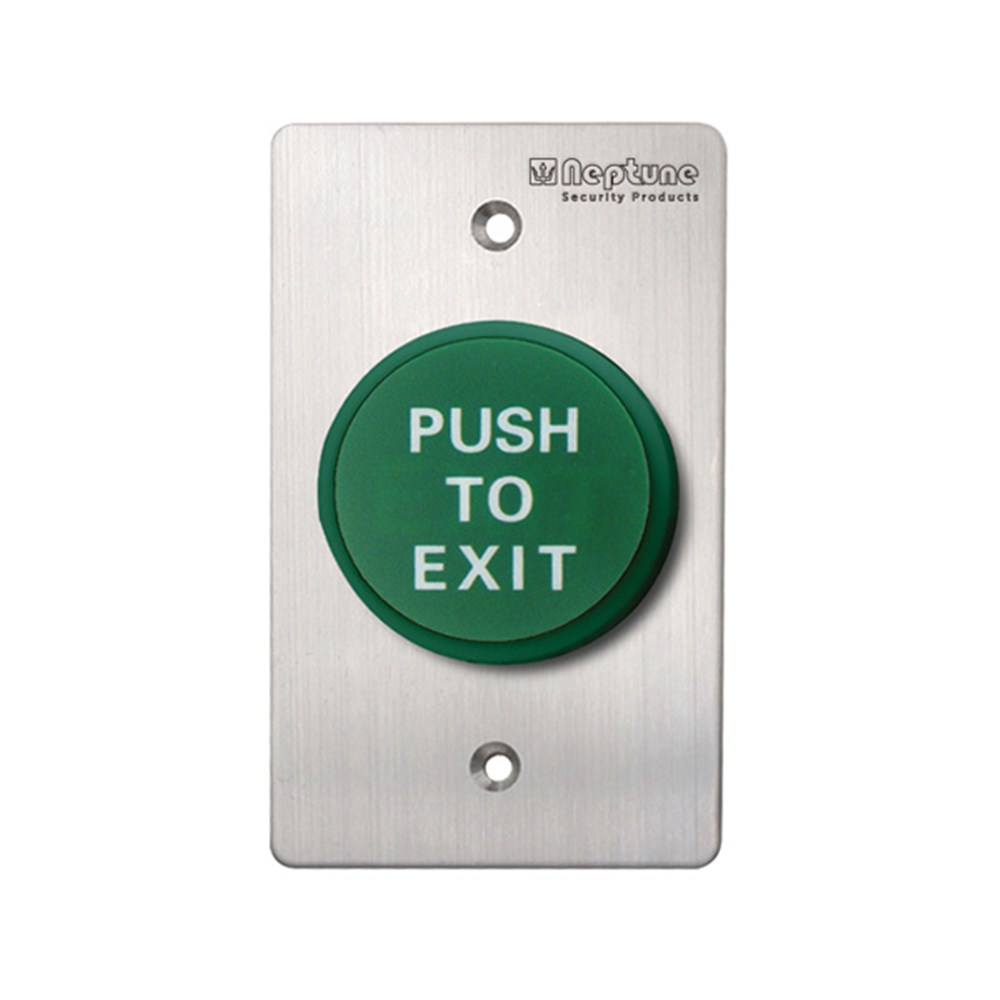

Neptune "Push to Exit" green flat button.

Contact rating: 3A/125-250VAC.
Power: 12VDC.
Button diameter: 50 mm.
Output contact: NO/NC/COM.
Mechanical life:100,000 tested.
Panel: 1.7 mm thick 304 stainless steel.
Operating temp: -20℃~ 55℃.
Operating humidity: 0-95%(relative humidity).
Surface mount: Optional NEASMB metal back box.
Installation diameter: 22 mm.
Fixing centres: 83 mm.
Dimensions: 115 (L) x 70 (W) x 20 mm (D).
Weight: 0.18kg.
IP rating: IP65.

Technical Specifications

Brand	NEPTUNE
Finish	Stainless Steel/Green
IP Rating	IP65
Current Rating	3 A at 125 Vac to 250 Vac
Momentary	Yes
Depth in mm	20
Grade of Stainless Steel	304
Overall Length in mm	115
Width in mm	70
Text or Symbol on Plate	PUSH TO EXIT
Touch or Touchless Operation	Touch
