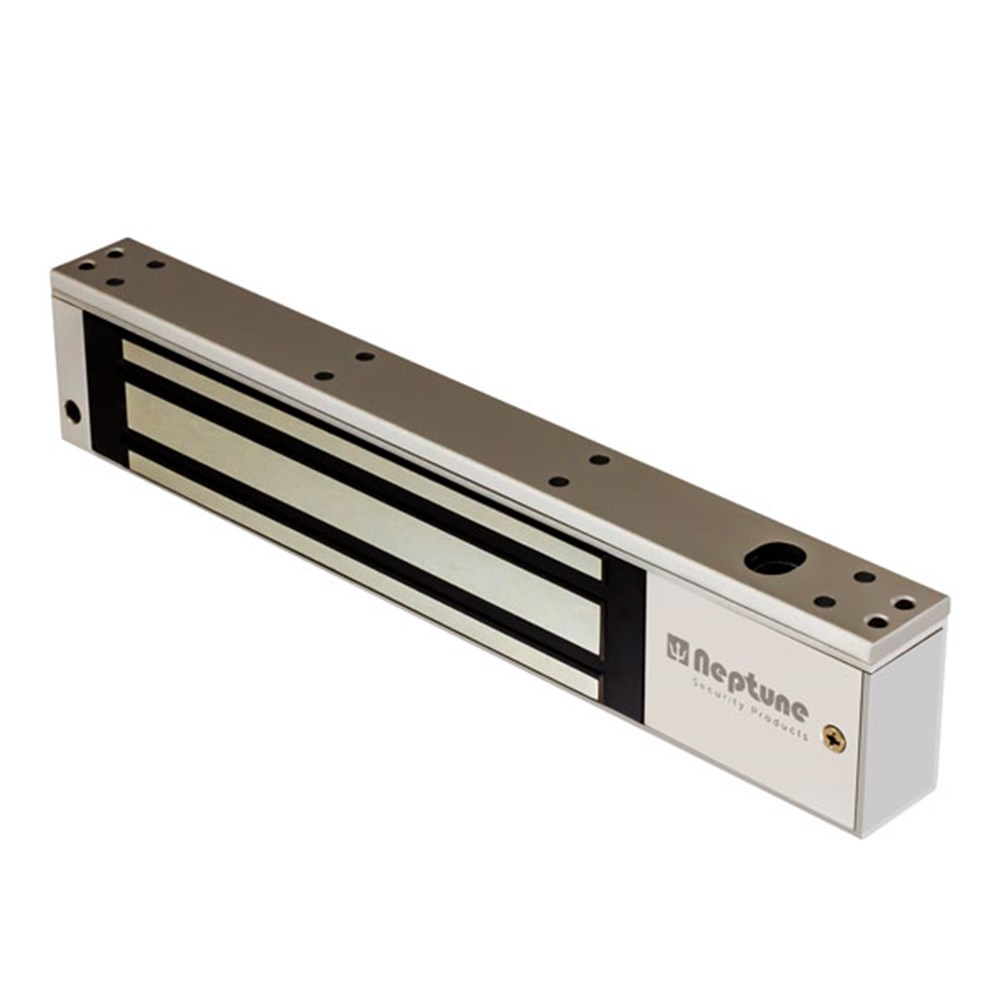

Single door monitored magnetic lock.
Dual voltage 12vdc @ 480mA, 24vdc @ 240mA.
Monitored, door status sensor.
LED indicator.
The overload current of relay contact is 1amp.
.Overload is strictly prohibited for voltage of 24V-DC.
Built-in time delay 0, 3, 6 or 9 seconds.
Holding force up to 280kgs.
Satin anodised aluminium housing.
Zinc plated electromagnetic body.
Magnet size 250 (L) x 47 (H) x 26 mm (D).
Armature plate 180 (L) x 36 (H) x 11 mm (D).
Weight 2kg.
L and Z mounting brackets are also available.

Brand	NEPTUNE
Finish	Satin Anodised
Working Voltage	12 Vdc to 24 Vdc
Door Status Sensor	Yes
Holding Force In Kg	280
LED Indicator	Yes
Time Delay	Yes
Single Or Double Door Maglock?	Single
Monitoring	Monitored
