EL6000 Series dimensions

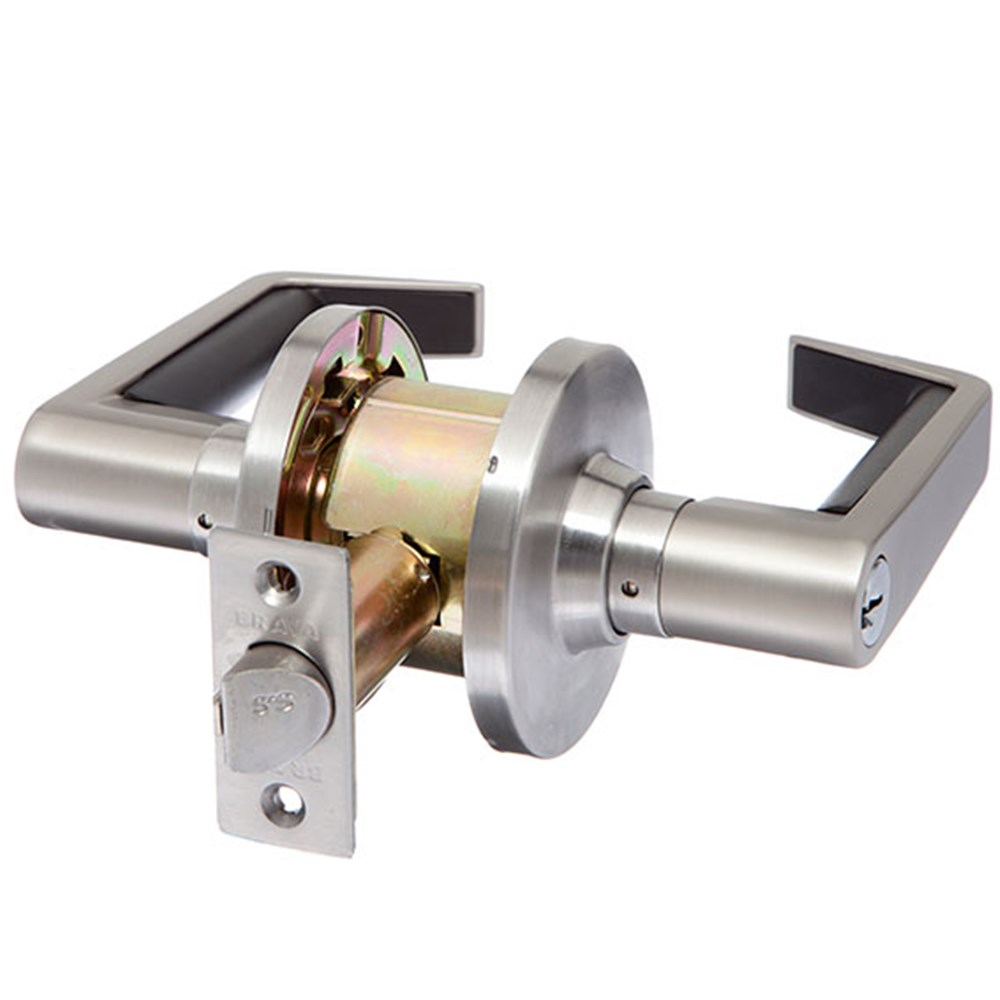

BRAVA Metro EL Series Glass Door Lever Set 70mm Backset Satin Chrome - EL6011SC70

Product Code: EL6011SC70

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro EL6000 series commercial grade glass door leverset.

firerated-icon BCA AS1428.1 -2009 compliant leverset.

Glass door function

  • Outside key locks and unlocks both levers.
  • Inside key locks and unlocks both levers.

Additional info

  • Cylindrical fixing.
  • Silca LW5 profile.
  • Incorporates the popular PD 8221 barrels.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • Anti-rotation fixing points.
  • 2 keys supplied.
  • BCA compliant.
  • Finished in satin chrome.
Door thickness 35-45 mm
Backset 70 mm
max. Lever / knob projection
distance may not include turnsnib		 63.7 mm
Strike 70 mm x 27 mm x 1.2 mm
Latch 70 mm backset
Latch face plate 57 mm x 25 mm
Cylinder LW5 profile
Door handing Non-handed knobs/levers
Rose 75 mm
Technical Specifications
Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) Yes
Clutching Levers No
Finish Satin Chrome
Function Glass Door
Lock Grade Commercial
Lock Type Cylindrical
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 70 mm
Fire Rated Yes
