EL6000 Series dimensions

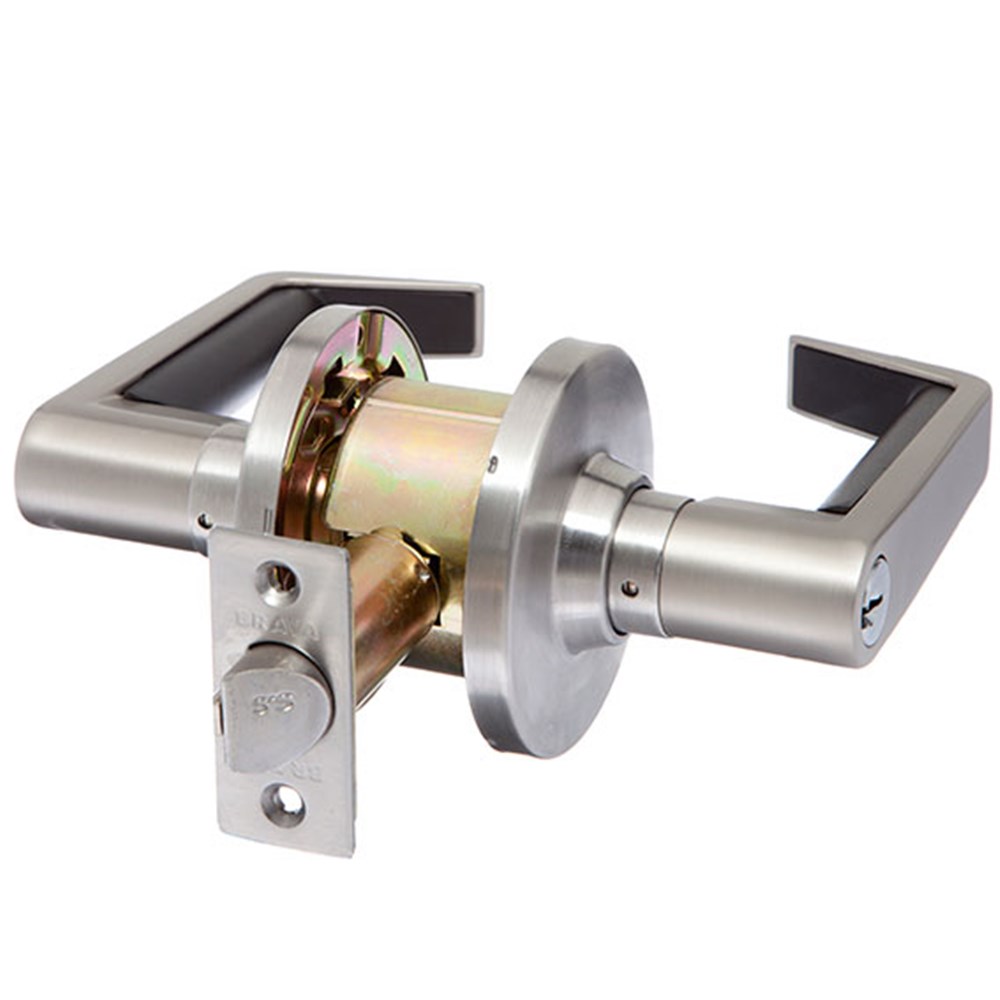

BRAVA Metro EL Series Classroom Lever Set 70mm Backset Satin Chrome - EL6012SC70

Product Code: EL6012SC70

Are you a tradesperson?

Get access to our best prices



Description

BRAVA Metro EL6000 series commercial grade classroom leverset 70 mm backset.

firerated-icon BCA AS1428.1 -2009 compliant leverset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Entrance function

  • Outside key locks and unlocks outside lever.
  • Inside lever free at all times.

Additional info

  • Cylindrical fixing.
  • Silca LW5 profile 6 pin cylinder.
  • Incorporates the popular PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • BCA compliant.
  • Finished in satin chrome.
Door thickness 35-45 mm
Backset 70 mm
max. Lever / knob projection
distance may not include turnsnib
63.7 mm
Strike 70 mm x 27 mm x 1.2 mm
Latch 70 mm
Latch face plate 57 mm x 25 mm
Cylinder LW5 profile
Door handing Non-handed knobs/levers
Rose 75 mm
Technical Specifications
Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) Yes
Clutching Levers No
Finish Satin Chrome
Function Classroom
Lock Grade Commercial
Lock Type Cylindrical
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 70 mm
Fire Rated Yes
