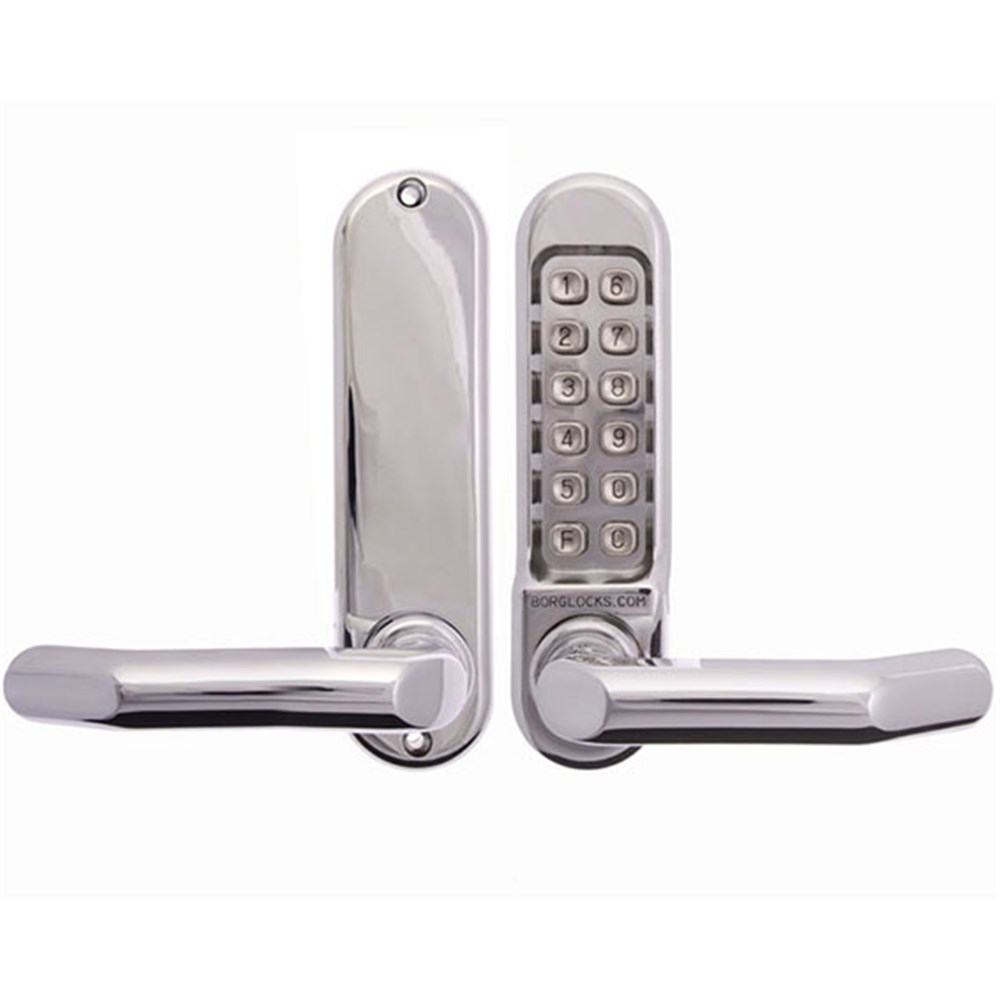

Borg Mechanical Digital Door Lock with Lever External Grade Chrome Plate - BL5001MG

Product Code: BL5001MG

Are you a tradesperson?

Get access to our best prices



Description

The External Series range of products has been developed specifically for weather resistant applications. Special layers of polished chrome finish is applied to the outer housing and lever which are guaranteed to resist corrosion in normal weather conditions for up to 1 year .

Other key features clutched handle which protects against forced entry and lock damage, optional free passage function, an 8 mm square drive so it can operate a wide range of leading brands of lock.

information-icon Not suitable for coastal or saline areas.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

information-icon BL5000 series without passage function, with F tumbler replaced by a coded or non-coded tumbler - number of combinations = 2048
BL5000 series with passage function - number of combinations = 1024

  • Fully mechanical external grade digital lock.
  • 8 mm square drive suitable for mortice locks.
  • 60 mm heavy duty stainless steel tubular latch.
  • Full size lever handles with soft grip rubber insert.
  • Clutching lever protection.
  • Optional passage function (if required).
  • 316 grade stainless steel internal components.
  • Special layers of polished chrome finish.
  • Large indented buttons for ease of use.
  • Fully reversible.
  • Suits doors from 35-80 mm thick.
  • Up to 2048 codes to choose from.
  • Designed for light to medium usage areas
    Not suitable for use in high traffic commercial areas.
  • Weather resistant.
  • Suitable for external use.
  • Fire rated.
Technical Specifications
Brand BORG
Accepts Single PIN Code Only Yes
Finish Chrome Plate
Has Holdback No
Has Key Override No
Has Levers On Both Sides Yes
Has Passage Function (DIGITAL11) Yes
Mechanical Digital Lock Yes
On-door Code Change No
Suits Door Thickness 35 mm to 80 mm
Weather Resistant Yes
Backset 60 mm
Fire Rated Yes
